How HLA Humanized Mice Are Transforming Preclinical Research and Immunotherapy

How HLA Humanized Mice Are Transforming Preclinical Research and Immunotherapy

HLA humanized mice at Biocytogen

How does the immune system distinguish friend from foe? Human Leukocyte Antigens (HLAs) are key players in this process, acting as molecular “spotlights” that present peptide antigens to immune cells, triggering antibody production and the elimination of abnormal cells.

HLA molecules are classified into two types:

  • HLA Class I: Expressed on nearly all nucleated cells, these molecules present endogenous peptides, such as those derived from intracellular pathogens or tumor cells, to CD8+ cytotoxic T cells.
  • HLA Class II: Found on antigen-presenting cells (e.g., dendritic cells, macrophages, B cells), these molecules present exogenous peptides, originating from extracellular pathogens, to CD4+ helper T cells.

Together, these HLA molecules not only form a versatile defense system against a wide range of threats, but also underpin advancements in modern medicine, shaping the effectiveness of vaccines and cutting-edge immunotherapies designed to harness the immune system to combat disease.



Advancements and Applications of HLA Humanized Mice

HLA humanized mice are transformative tools in immunological research. Engineered to express human HLA genes in place of their murine counterparts, these models enable the study of human-like immune responses in vivo, offering a clinically relevant platform for studying immune mechanisms and evaluating therapies in preclinical research.

Biocytogen has developed a comprehensive suite of HLA humanized mice in both C57BL/6 and immunodeficient B-NDG backgrounds, facilitating preclinical testing of immune therapies, including cancer immunotherapies and vaccines, with high translational value. They are also pivotal for studying specific HLA alleles in autoimmune disease mechanisms and antigen-driven T-cell responses.

Case Study: B-HLA-A2.1 Mice

Biocytogen’s B-HLA-A2.1 mice express human α1 and α2 domains, which form the peptide-binding groove and determine antigen specificity, along with human β2-microglobulin, which ensures the structural integrity of the groove. This model generates robust immune responses that closely mimic those of humans to both peptide and mRNA vaccines, making it an excellent platform for evaluating vaccine candidates.

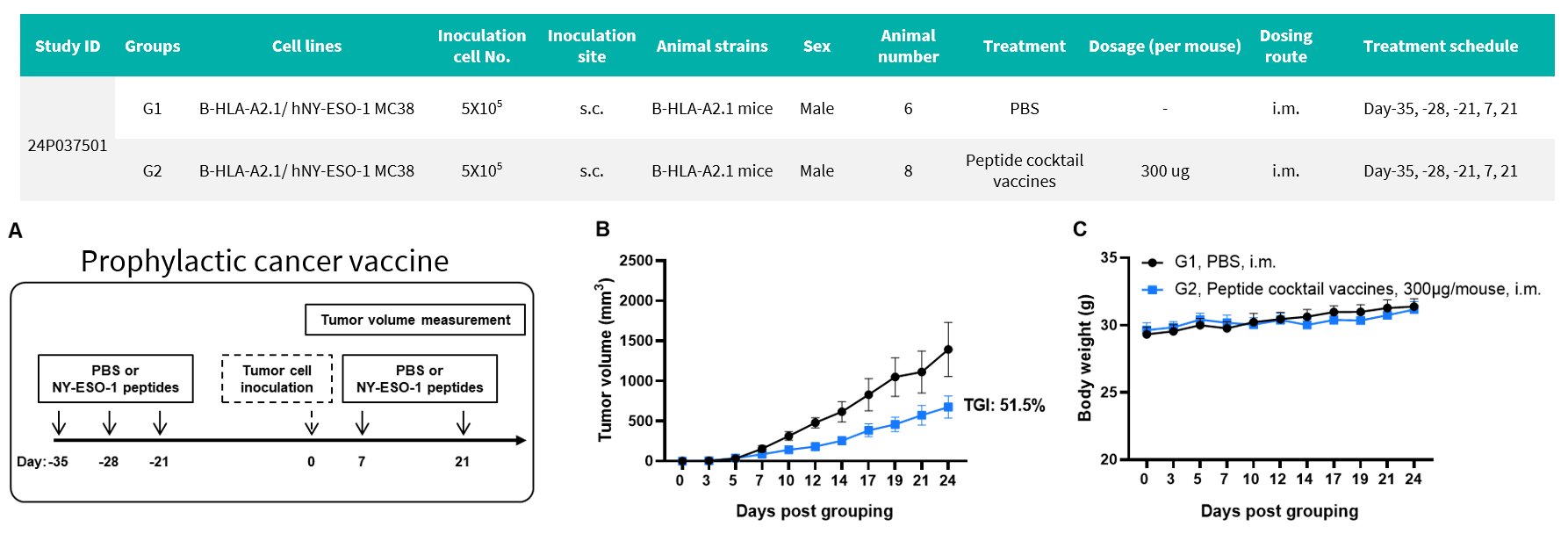

Antitumor activity of NY-ESO-1 peptides against syngeneic tumors.
Antitumor activity of NY-ESO-1 peptides against syngeneic tumors. (A) Experimental scheme. (B) Prophylactic treatment with NY-ESO-1 peptides (300 µg) in B-HLA-A2.1 mice (n=6–8/group) reduced tumor growth after inoculation with B-HLA-A2.1/hNY-ESO-1 MC38 cells. (C) Body weight changes. B-HLA-A2.1 mice provide a powerful preclinical model for in vivo evaluation of vaccines. Mean ± SEM.

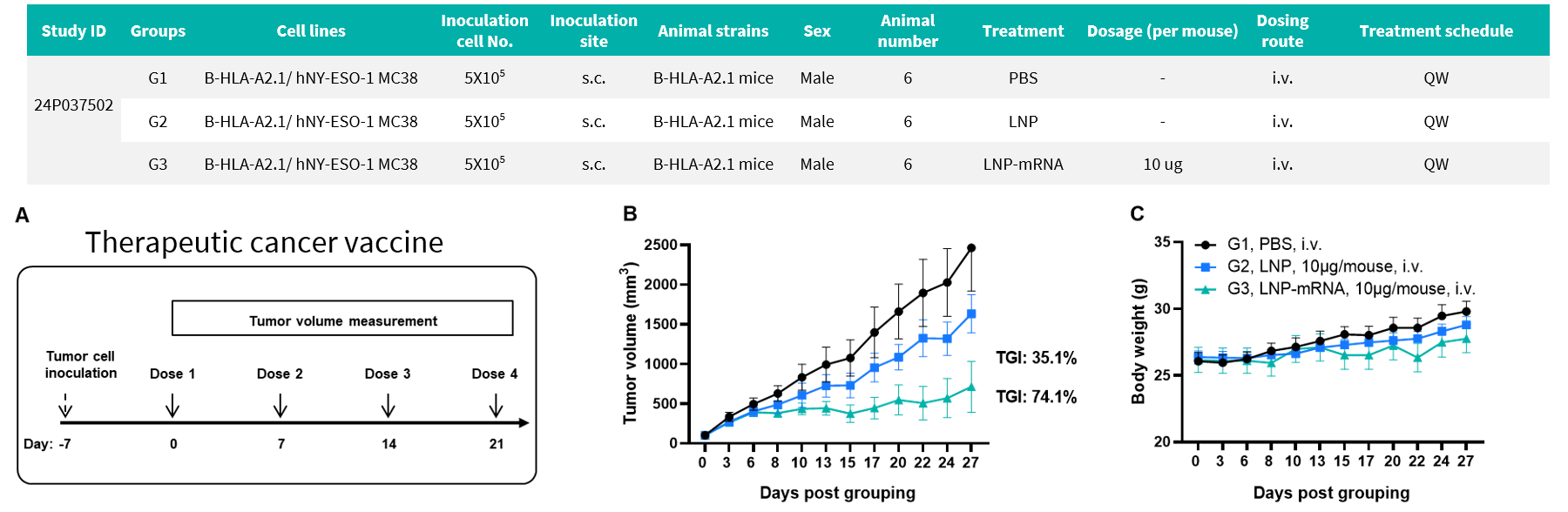

Antitumor activity of NY-ESO-1 mRNA vaccine against syngeneic tumors.
Antitumor activity of NY-ESO-1 mRNA vaccine against syngeneic tumors. (A) Experimental scheme. (B) Therapeutic treatment with mRNA vaccine in B-HLA-A2.1 mice (n=6/group) implanted with B-HLA-A2.1/hNY-ESO-1 MC38 tumor cells showed robust tumor growth inhibition and prolonged survival. (C) Body weight changes. B-HLA-A2.1 mice serve as a powerful preclinical model for evaluating mRNA vaccines. Mean ± SEM.

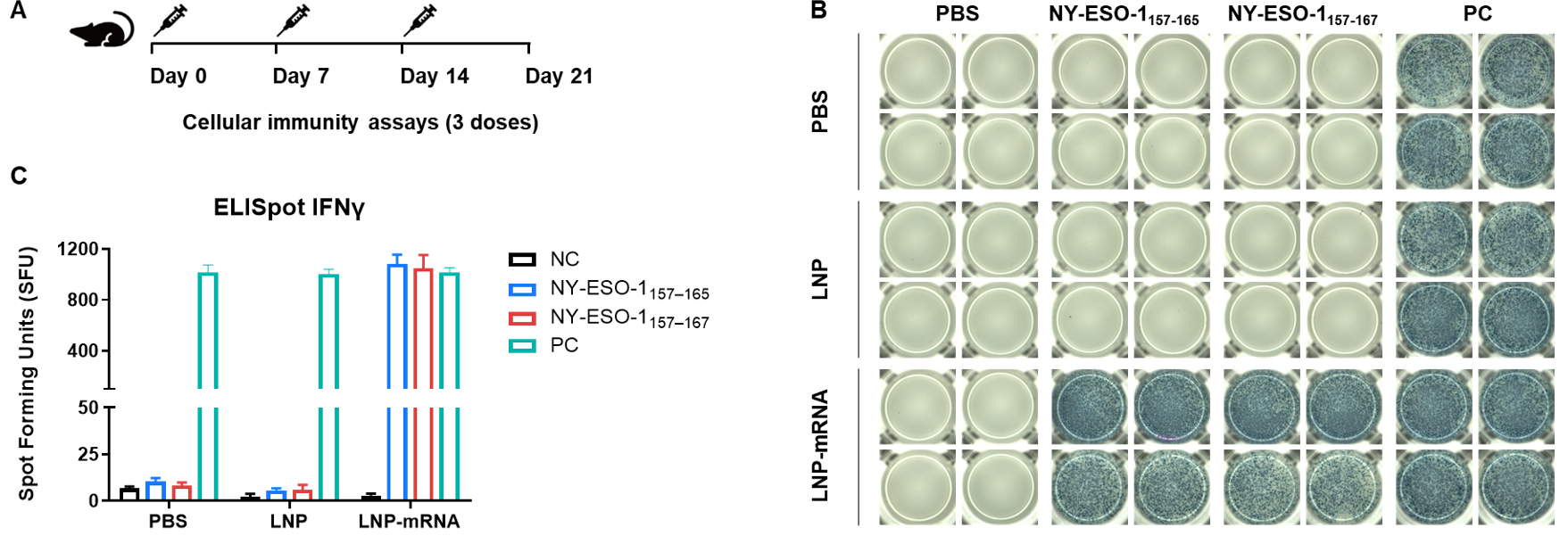

Detection of vaccine-induced immune responses in B-HLA-A2.1 mice by IFN-γ ELISpot assay.
Detection of vaccine-induced immune responses in B-HLA-A2.1 mice by IFN-γ ELISpot assay. (A) Vaccination and testing scheme. Male B-HLA-A2.1 mice (9–10 weeks old, n=3/group) were inoculated intramuscularly with PBS, LNP, or LNP-mRNA and vaccinated three times at 1-week intervals. Splenocytes were extracted one week after the final immunization, stimulated with peptides, NC, or PC, and IFN-γ secretion was measured. (B) Representative IFN-γ secretion results. (C) Summary of results. B-HLA-A2.1 mice serve as a robust preclinical model for vaccine evaluation. NC: negative control. PC: positive control.

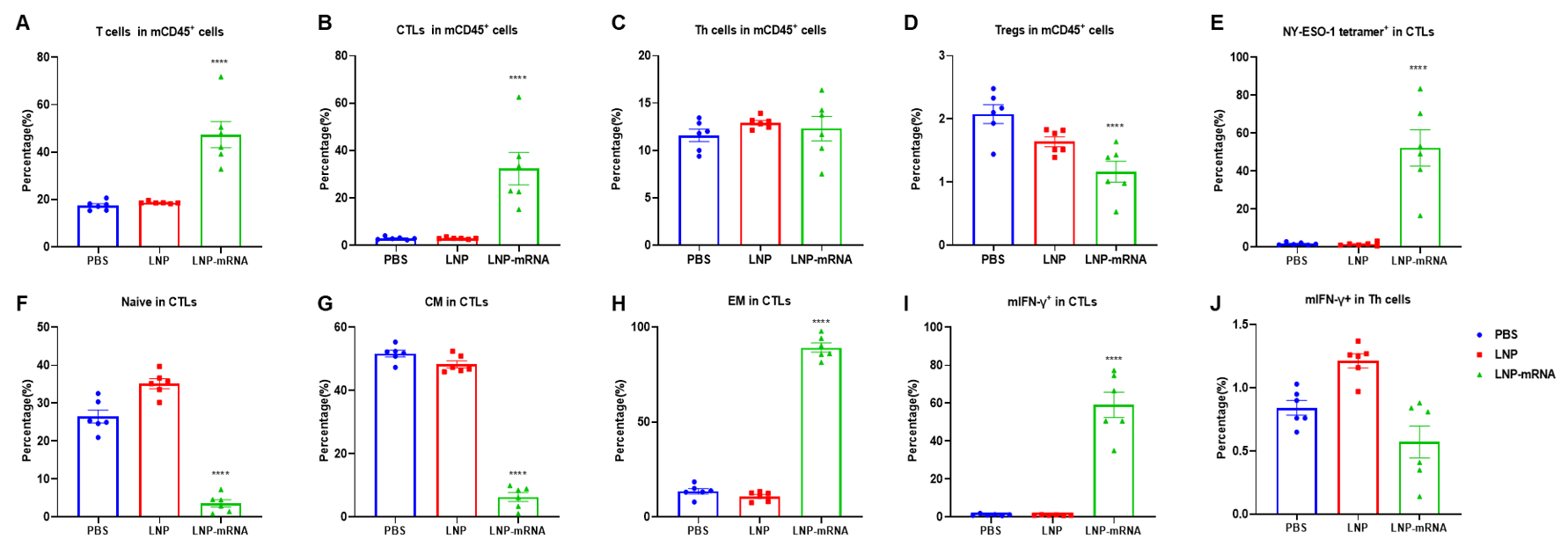

LNP-mRNA vaccination generates specific effector CD8+ T cells in spleens.
LNP-mRNA vaccination generates specific effector CD8+ T cells in spleens. Spleens from B-HLA-A2.1/hNY-ESO-1 MC38 tumor-bearing mice immunized with PBS, LNP, or LNP-mRNA were analyzed on day 27. Flow cytometry showed elevated percentages of spleen T cells (A) and CD8+ T cells (B) within CD45+ cells after LNP-mRNA treatment. LNP-mRNA generated tetramer+ CD8+ T cells (~50% of total CD8+ T cells) (E), predominantly in the effector memory subset (H) with reduced naïve (F) and central memory (G) subsets. IFN-γ secretion was mainly from CD8+ T cells (I) and not CD4+ T cells (J).

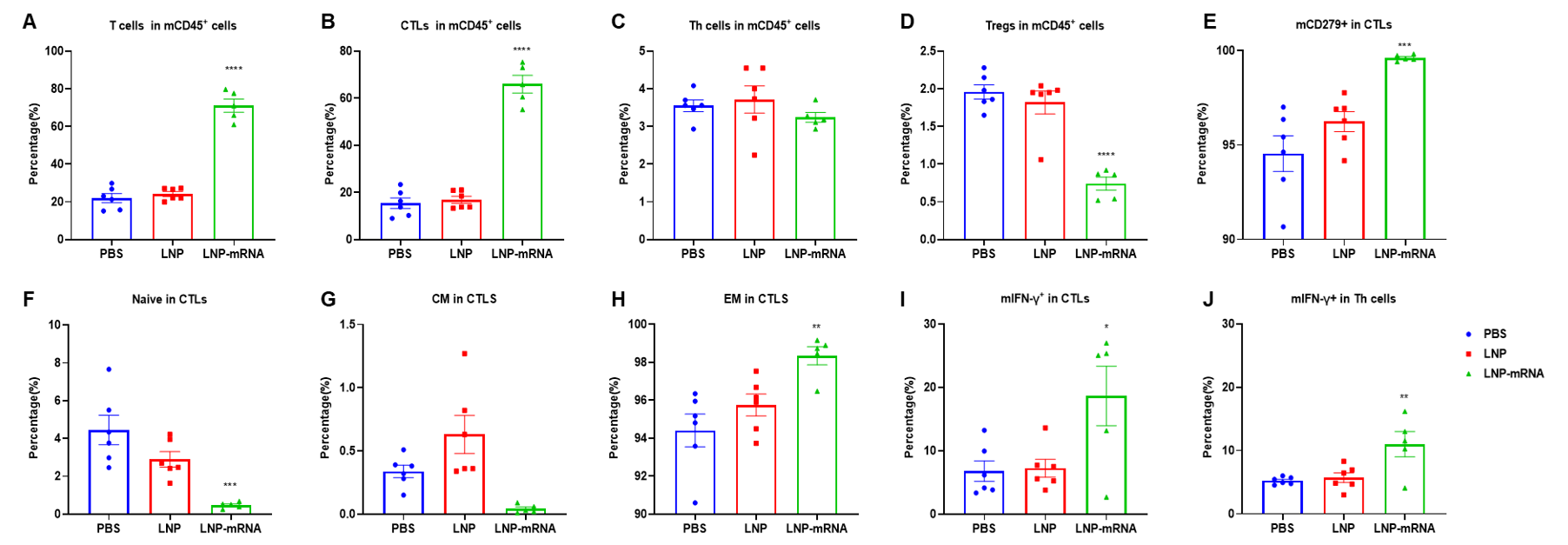

LNP-mRNA enhances beneficial repertoire of anti-tumor T cells.
LNP-mRNA enhances the beneficial repertoire of anti-tumor T cells. Tumors from B-HLA-A2.1/hNY-ESO-1 MC38-bearing mice immunized with PBS, LNP, or LNP-mRNA were analyzed on day 27. Flow cytometry showed elevated tumor-infiltrating T cells (A) and CD8+ T cells (B) within CD45+ cells, while Tregs were reduced in the LNP-mRNA group (D). CD8+ T cells showed lower naïve (F) and increased effector memory (EM) subsets (H). IFN-γ production was observed in CD8+ T cells (I) and CD4+ T cells (J).

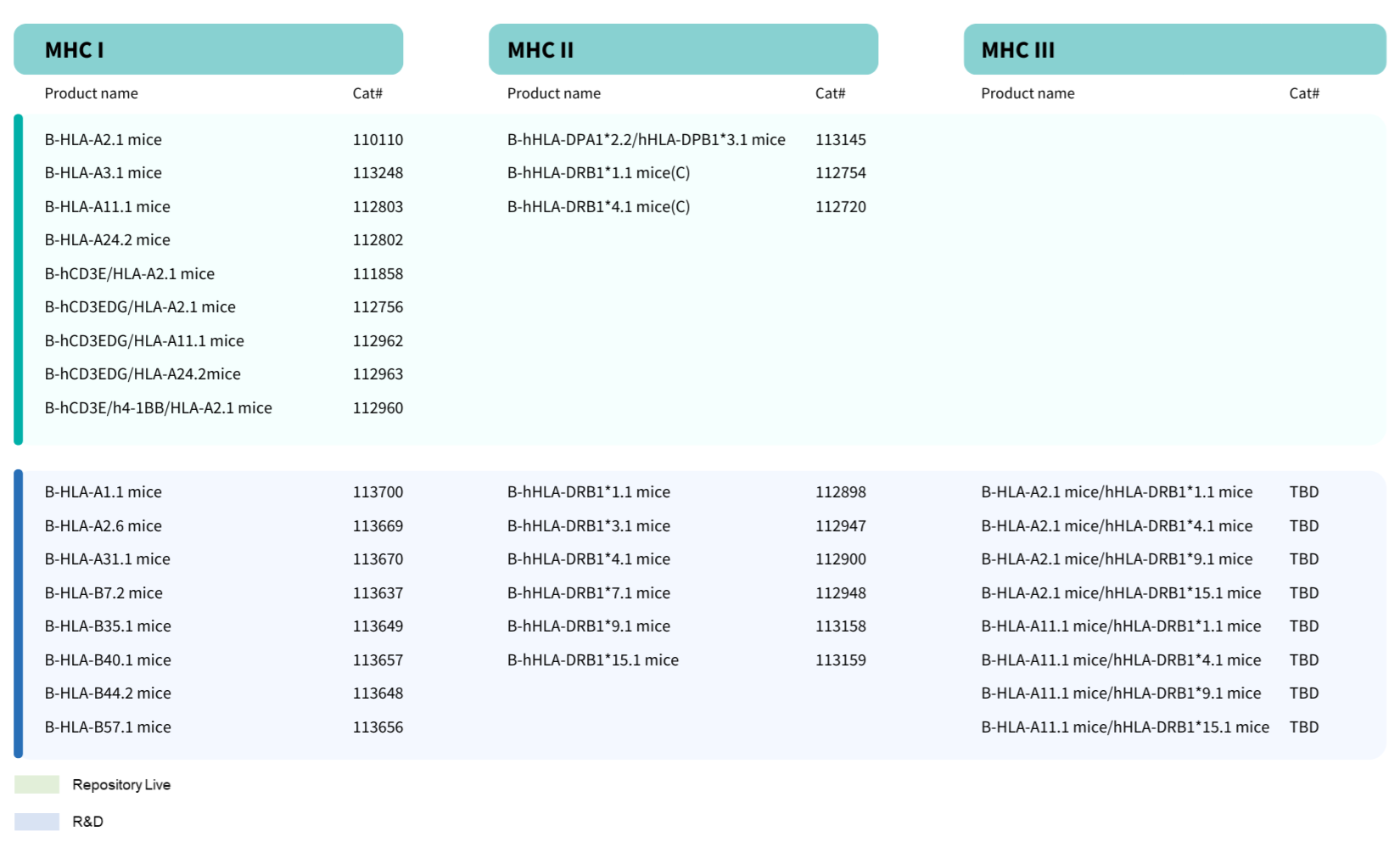

HLA Humanized Mice on a C57BL/6 Background Available at Biocytogen

HLA humanized mice in c57bl/6 background at Biocytogen

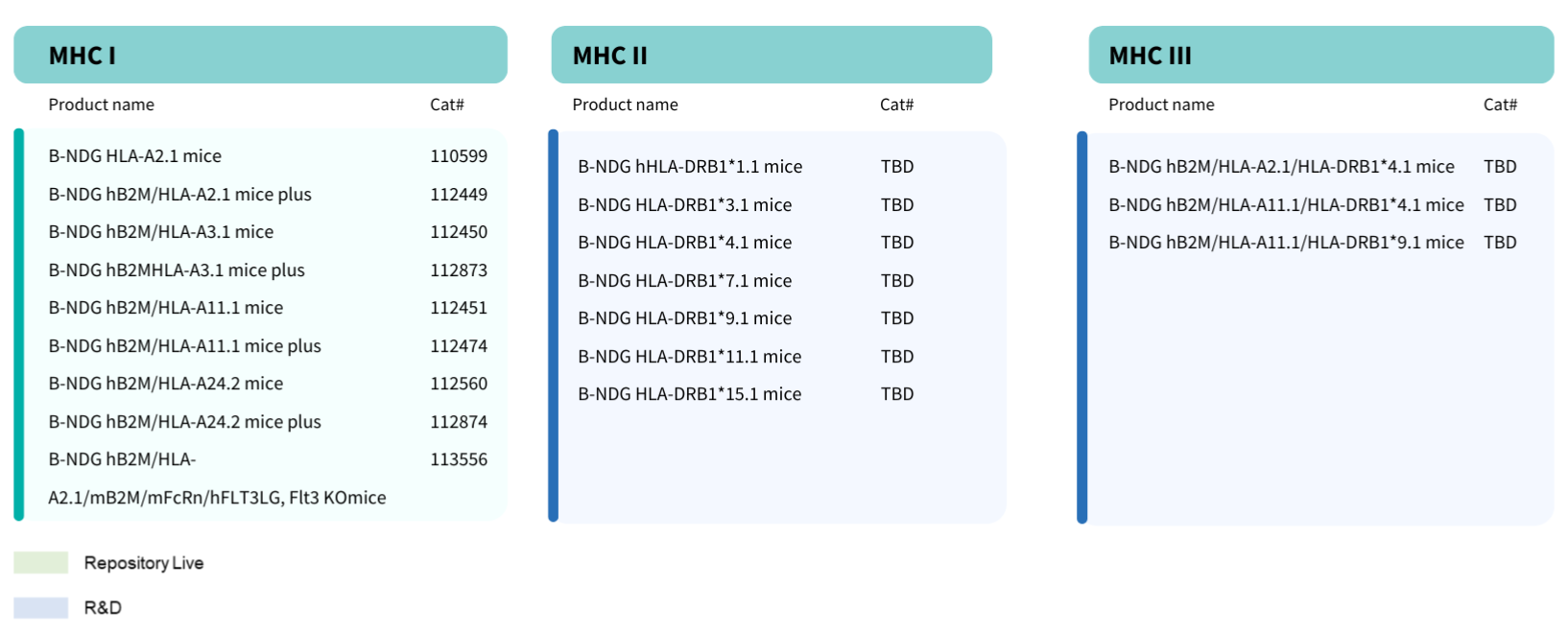

HLA Humanized Mice on a B-NDG Immunodeficient Background Available at Biocytogen

HLA humanized mice in B-NDG (immunodeficient) background at Biocytogen



What’s Beyond

By helping to bridge the gap between preclinical and clinical studies, HLA humanized mice facilitate the development of safer and more effective therapies, advancing progress in immunology and beyond. Biocytogen not only provides cutting-edge humanized models but also offers comprehensive pharmacological services using these models. Contact us today to learn how our HLA-related products and services can accelerate your drug discovery journey!
